Performance parts for FIAT and Lancia

for parts orders call 303-421-1922

30 years serving the FIAT community

Exclusive at Apple Motors:
descriptionprice
Drilled and slotted brake rotors for FIAT. $90 per pair
$170 set of four

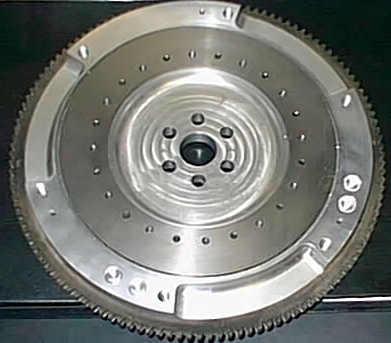

7 pound balanced flywheel with replaceable friction surface. Low moment of inertia, Stock ring gear diameter for FIATs with 1116,1290 or 1500 SOHC engines.
fit most SOHC FIAT from 1100cc to 1500cc		 $550
FI computer upgrades for X1/9s and Spiders A tuneable computer in a bolt in kit. no cutting or drilling. This includes:
a versatile Haltech programmable computer
all the sensors to communicate your engine's needs to the computer
an exchange throttle body with sensors installed
all the wiring neccessary. Actually only one wire is added and the rest are standard Bosch
fully detailed illustrated installation instructions
software maps for tailored to your car
toll free telephone support (3 hours)
unlimited internet and email support 		price = $2095

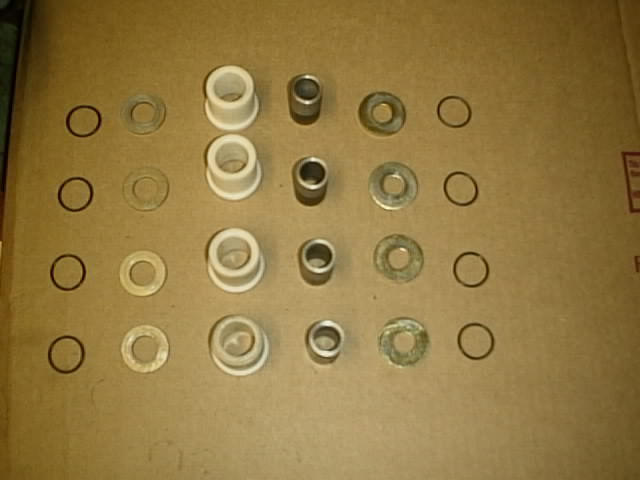

Delrin bushing sets for FIAT Spider control arms. $200 set of eight
850 axle with CV joints $840 / set includes new wheel bearings, new inner axle boots, CV joints, conversion axle made from a 128 axle and an 850 axle, used outer hubs, conversion bearing housings, and instructions.
Adjustable cam gears make adjustments easily. With this gear installed you can change cam timing precisely 1, 2, or any whole number of degrees (up to 8 degrees) in 5 minutes if the cam cover is already removed. $85 modify yours
$100 ours

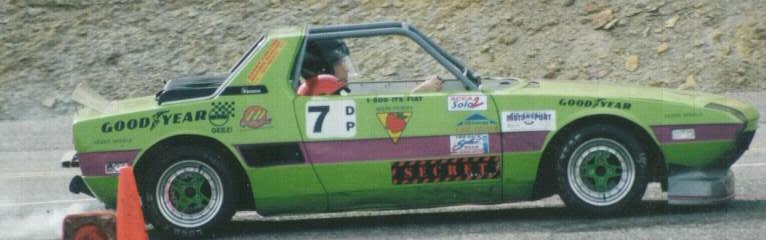

DP7 green X1/9 Apple Motors autocross car
| spec sheet | | SOHC engine | | photos |
To hold your engine and transmission in place during those
high G turns try some 94 durometer motor mounts.
Custom made exchange mounts, dog bones, reaction arms

It's here! Power upgrade kit for FIATs with fuel injection.
Now, you can tune a FIAT computer to use a new cam or benefit from exhaust headers,
larger throttle valve, turbo, higher compression, etc.
2 hours or less to install our kit and at least a 20% improvement in power and torque.
$2095 for a complete kit featuring an F10 Haltech programmable computer
3 hours phone support, downloads and email support included
we have a library of maps (fuel injection data sheets) for you to download
(Laptop PC required for tuning; they can usually be purchased used for under $300)
Fuel AND ignition engine management kits also available.
Titanium retainers adjuster under the cam follower.... 20% less valve train mass
Aluminum and steel flywheel 6.5 pounds for SOHC
lightweight adjustable timing gears steel or even plastic....50% less mass than stock steel gears
Anodized Al 60% under drive crank pulley a 3" pulley accounts for....80% less mass
Keizer wheels affordable, dependable.eg 6X13 6.75 lbs......55% less wheel mass
Performance injection computers increase torque, horsepower, responsiveness.

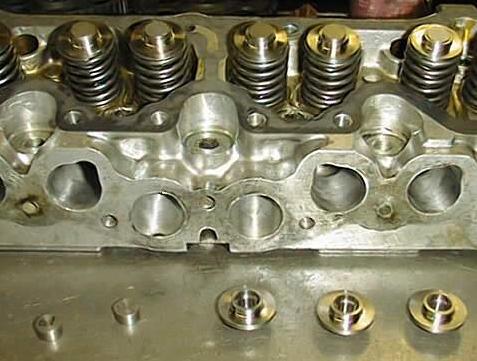

Valve train weights for FIAT with our own Titaninum retainers and valve shims
All weights in grams
FIAT valve application weight of valve only Stock FIAT valve train
w/ shim, cup, retainer, valve & keepers 		Apple Motors lightweight
complete valve train 		Weight loss
percentage
SOHC intake 77 170 135 21 %
SOHC exhaust 71 163 128 21 %
DOHC intake 93 185 150 19 %
DOHC exhaust 82 174 139 20 %

35 grams of weight loss at each valve; 35 X 8 = 280 grams Over 1/2 pound of weight savings in a
very important part of the enigine. Think about it....Heavier valve springs require horsepower to operate.
A 20 percent change in the mass will allow higher RPMs without valve float.
Save money with less wear and tear on that expensive camshaft. As a bonus,
the vavle adjustment shims are about 1 gram; so when you must install a larger one
you don't pay much of a weight penalty. A complete set of 8 titanium retainers,
eight of our modified cam followers and 16 shims (consultation and measurements
will be required here) will cost $420 for the do-it yourselfer.

For $620 we will convert your FIAT head. We will install titanium retainers, our
special cam followers and shims and return it with the valves adjusted. We will include 8 extra assorted valve shims.

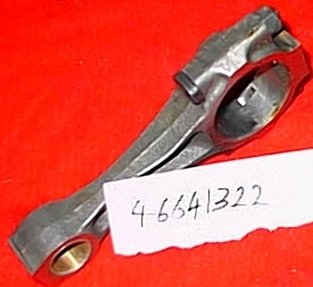

Here is a before and after of one of our reworked 1500CC connecting rods
$560 for a set of 4.
anodized pulley 4 ounce 60% underdrive 80% less mass $110
new Brembo drilled brake rotors for FIAT$140 per pair
steel braided brake hoses for X1/9$158 / set of 4
850 Bosch electronic distributor and ignition$275
Bosch electronic ignition conversion for some DOHC engines$250 most models

Engines, cylinder heads, transmissions built to order... Stock, high performance or racing.

Performance cams and adjustable camshaft gears. Get some more power with out doing open heart surgery. Camshafts for street or competition, call for prices

For 850 FIAT:
850 kingpin repair... expert craftsmanship can get those loose front uprights back to factory specs. Just send in your uprights for a quick repair.

Standard 3 angle valve job on any FIAT cylnder head these are shipped with cam installed and valves adjusted
High performance cylinder heads available also. These are sold either outright or on an exchange basis

Rebuilt brake calipers, starters, alternators.

Rear end differentials:
drop out pumpkins for $350 --ratios 10/41 and 10/43
crankshaft kits .. with crankshaft ground to max .020" undersize and bearings furnished $200

Suspension, wheels, lugs and brakes

Aluminum wheel spacers... increase the track width for better handling and looks. You may need longer lugs.
Lug nuts and hardened studs available for the street or competition.

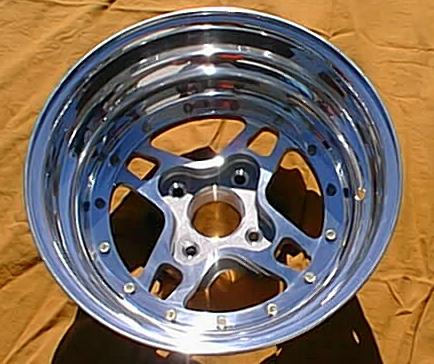

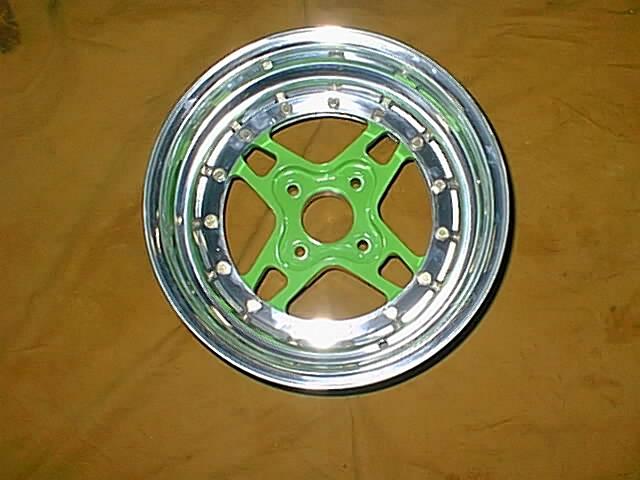

We feature Keizer Alloy Wheels. They are very light. They bolt on with the stock lug bolts and are hub-centered. And now MAGNESIUM centers Call for prices.

More Keizer Wheels, some with COLO R


These three piece wheels, below, are made in America. Each 13X8" wheel for a an X1/9 weighs a mere 8 pounds. That 28 pounds saved in unsprung weight will do a lot for performance. Just take a short drive in a car after changing just the wheels, not tires, and you'll agree. It is worth it. The car accellerates, corners and brakes better. If you put Keizer Wheels on your car, you'll even save fuel. What a deal!

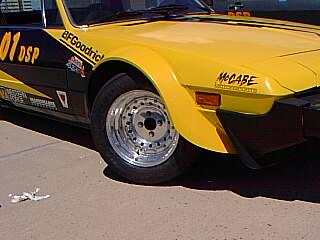

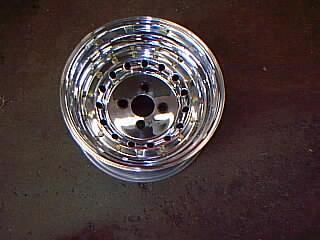

6.5" super lightweight. Everyone who picks one of these up to check the mass, laughs. At 8 pounds, "It feels like it must be plastic." Feast your eyes on this fast DSP X1/9 FIAT and the 8" wide Keizer wheels
Used mag and aluminum wheels for FIAT and Lancia
All of these have a 98 MM 4 bolt pattern.
Cromadora magnesium alloy wheels with hub caps 13" X 5", 8 pounds, Great for Vintage racers

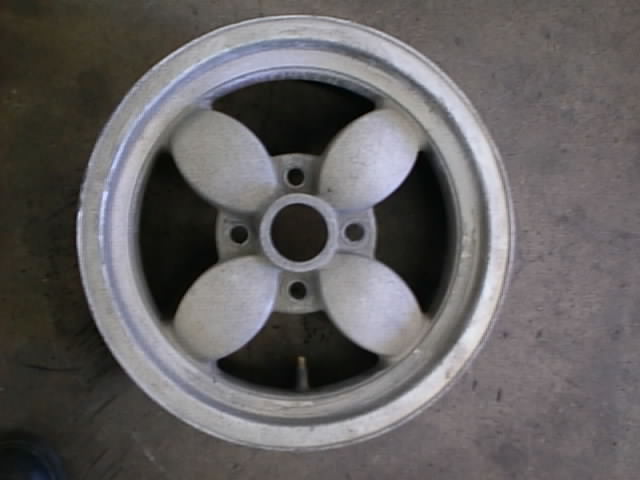

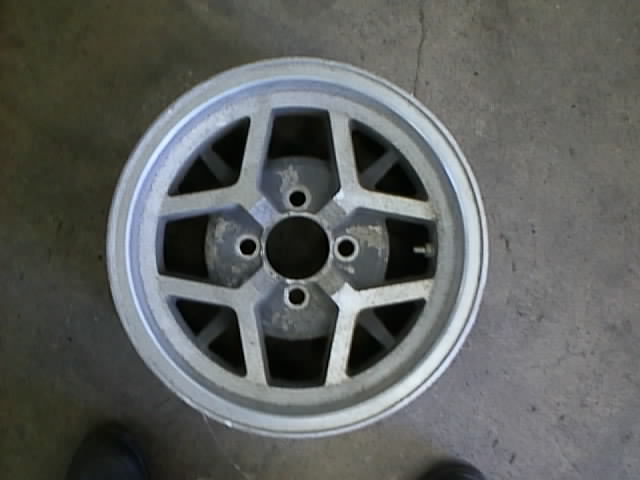

A.R.E. Libre pattern wheels. Size 13X5"; weight 10.5 lb A collector's item made by American Racing. $600 per set with lugs.

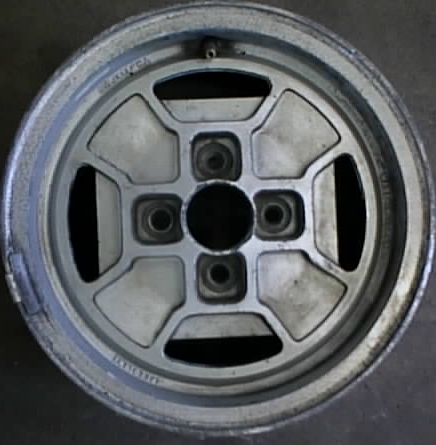

Modern "Iron Cross" pattern 6" X 13" Cromadora. These weigh 13 lbs. each. This pattern is a rarity in 14" size.
Bertone Cromadora Aluminum 5 1/2" 13 lbs

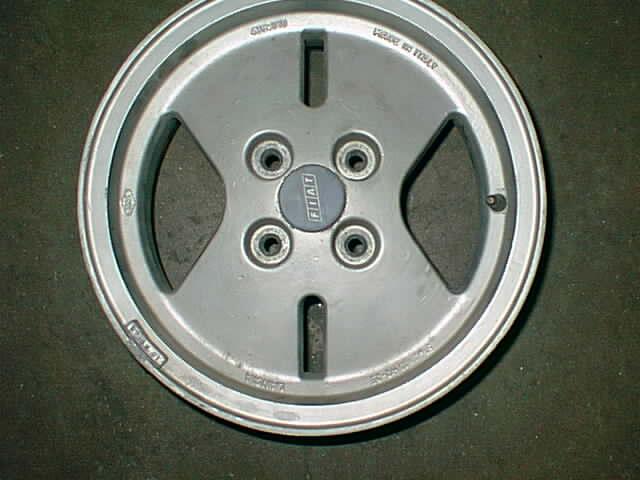

Cromadora Aluminum 6" 13 lbs from a Scropion

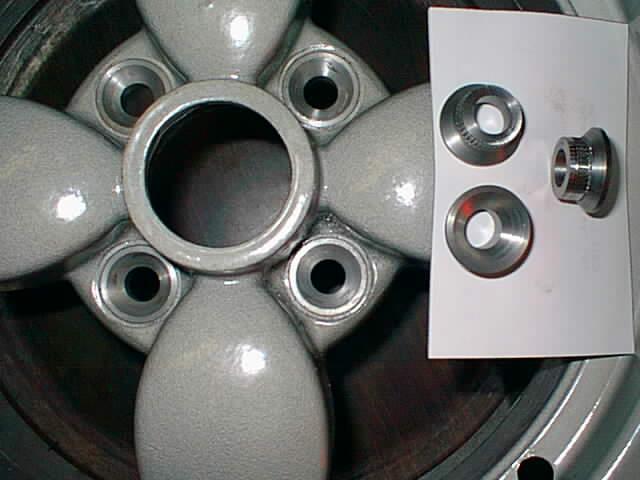

Conversion for safety and reliability. Details on inserts.
Apple Motors fabricates these inserts so that you can use stock lug bolts with aftermarket wheels such as those below.
American Racing Wheel Company makes these in 5 1/2" width

for a better view of some of these wheels


1-303-421-0571 for technical assistance

To inquire or order use this form to e-mail your request....Mail to : parts'at'applemotors.com
of course the 'at' is really an @
